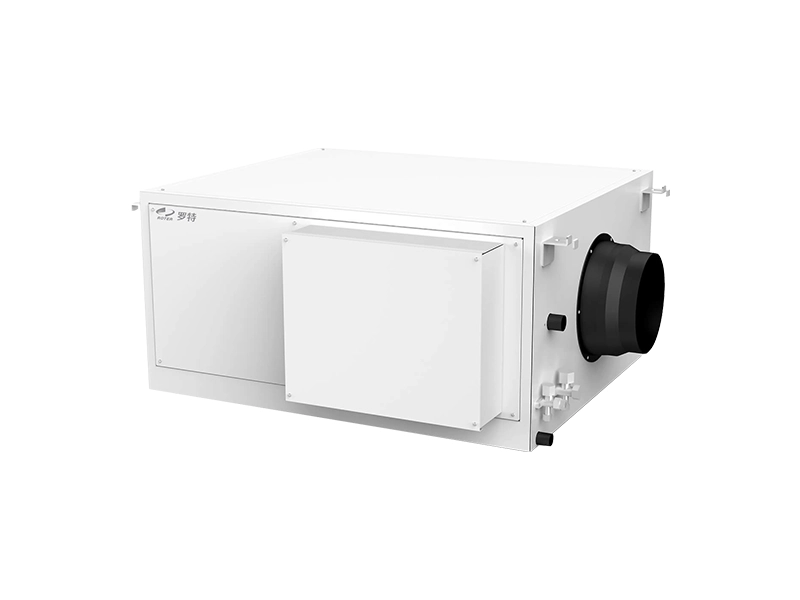

Wine Cellar Dehumidifier

Applicable Scenarios: wine cellars, electronics workshops, museums, equipment rooms (server rooms), and laboratories.

+86 18800560886 +86 17768519872

Wine Cellar Dehumidifier Specifications and Parameters

Model	LTCS-06	LTCS-10	LTCS-13
Temperature Control & Measurement Range	5-35℃±2℃	5-35℃±2℃	5-35℃±2℃
Humidity Control & Measurement Range	30-95%±5%	30-95%±5%	30-95%±5%
Cooling Capacity	3.5KW	5.1KW	7.5KW
Heating Capacity	2KW	2KW	3.6KW
Dehumidification Capacity	2.0Kg/h	3.5Kg/h	5.5kg/h
Humidification Capacity	1.5Kg/h	3Kg/h	3Kg/h
Circulation Airflow	600m³/h	1000m³/h	1250m³/h
Unit Noise	≤45dB	≤45dB	≤50dB
Power Supply	220V/50Hz	220V/50Hz	220V/50Hz
Maximum Input Power	3.6KW	4.25KW	6.1KW
Maximum Input Current	16A	19.5A	28A
Compressor Input Power	1.25KW	1.38KW	2.2KW
External Static Pressure	70Pa	70Pa	100Pa
Air Port Size	φ180mm	φ200mm	φ200mm
Air Filter	Primary Filter	Primary Filter	Primary Filter
Control Method	Intelligent temp. & humidity control panel	Intelligent temp. & humidity control panel	Intelligent temp. & humidity control panel
Indoor Unit Dimensions (L×W×H)	940 × 640 × 370 mm	940 × 640 × 370 mm	940 × 640 × 370 mm
Outdoor Unit Dimensions (L×W×H)	812 × 256 × 540 mm	850 × 310 × 610 mm	920 × 340 × 700 mm
