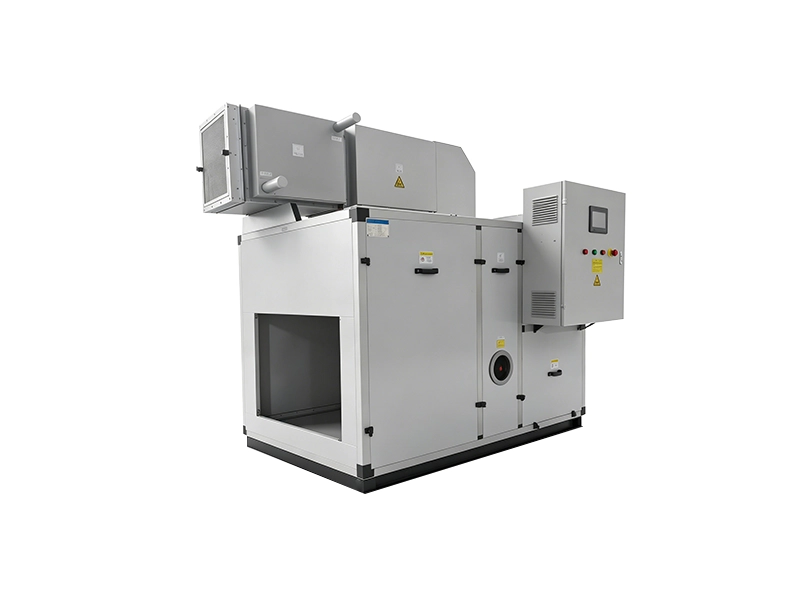

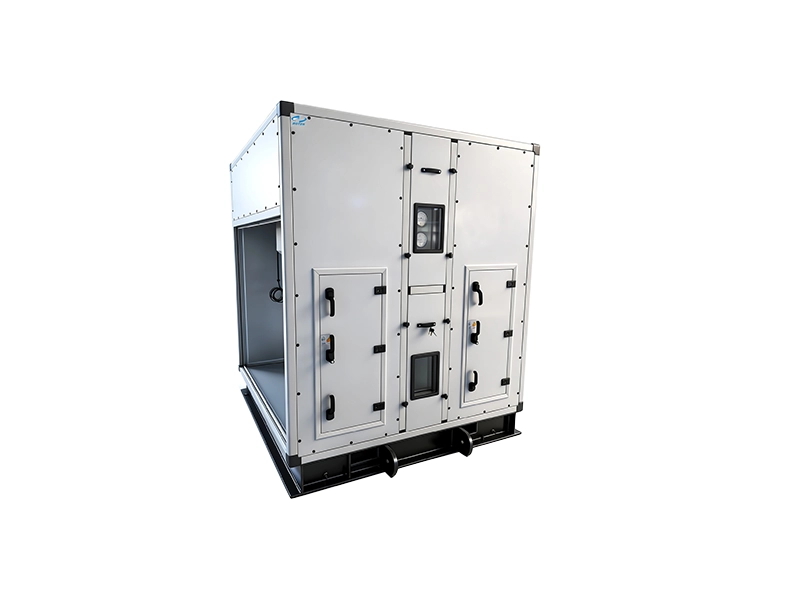

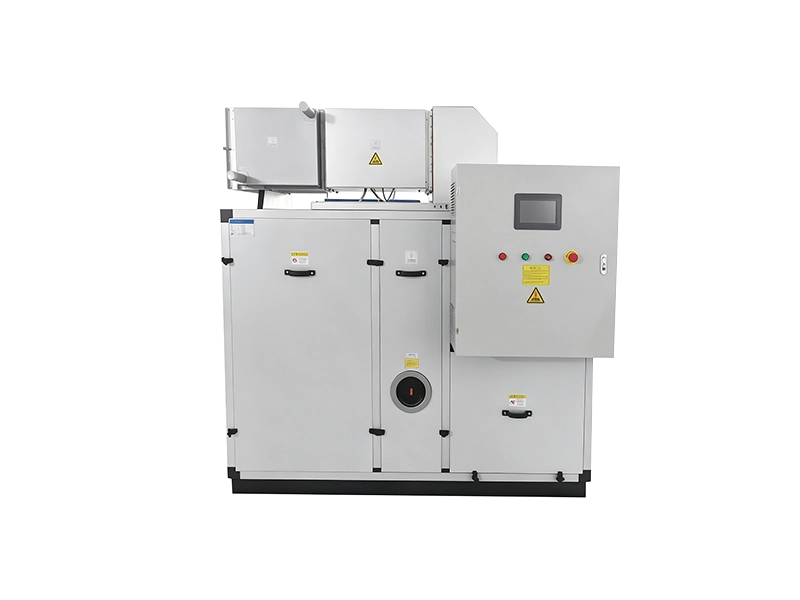

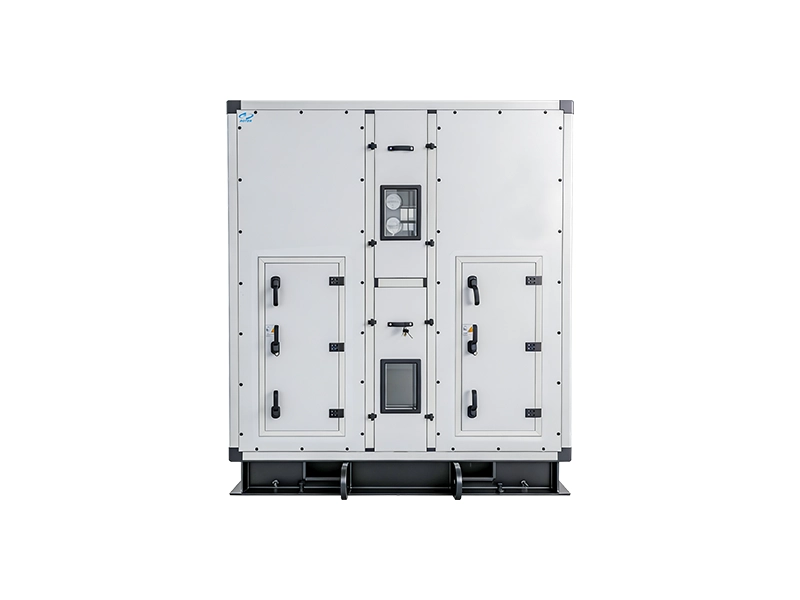

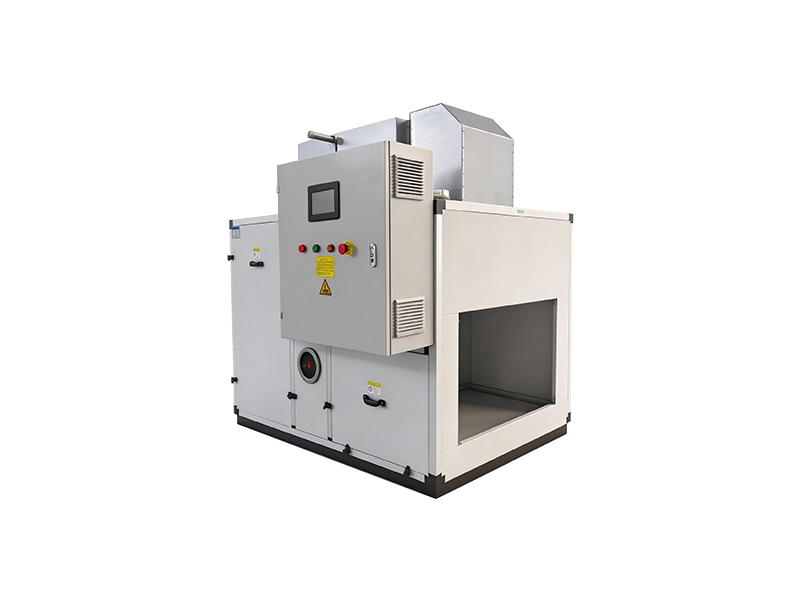

Wheel-Section Wheel Desiccant Dehumidifier Unit

● The rotor-section dehumidifier comprises only the rotor dehumidification section and typically needs to be operated in conjunction with other air handling units.
● Wheel-Section Wheel Desiccant Dehumidifier Unit can be connected to the air handling unit either by duct connection or by close butt-joining.

+86 18800560886 +86 17768519872

Wheel-Section Wheel Desiccant Dehumidifier Unit Technical Parameters

Model	Process Airflow m³/h	Regeneration Airflow m³/h	Rated Dehumidification Capacity kg/h	Total Unit Electric Heating Power kw	Steam Heating kg/h	Cooling Load kw	A mm	B mm	C mm	M*N
LT-500D-S	500	160	3.6	4.76	----	3.33	1300	700	1150	200*160
LT-850D-S	850	280	6.1	7.82	-----	5.66	1300	700	1250	320*160
LT-1200D-S	1200	405	8.6	11.18	-----	8.0	1400	750	1300	320*250
LT-1650D-S	1650	550	11.9	13.95	-----	11.0	1400	800	1450	400*250
LT-2000D/Z-S	2000	660	14.4	19.2	0.57	13.5	1450	800	1450	400*320
LT-2500D/Z-S	2500	850	18	23.15	0.75	16.8	1450	850	1500	500*250
LT-3000D/Z-S	3000	1000	21.6	27.85	0.95	20.2	1500	900	1550	500*320
LT-3500D/Z-S	3500	1150	25.2	32.35	0.95	23.6	1500	1000	1650	630*320
LT-4000D/Z-S	4000	1300	28.8	36.85	0.95	26.9	1500	1050	1700	630*400
LT-4500D/Z-S	4500	1500	32.4	41.7	1.3	30.3	1500	1100	1800	630*400
LT-5000D/Z-S	5000	1650	36	46.2	1.3	33.7	1500	1150	1950	630*500
LT-6000D/Z-S	6000	2000	43.2	55.6	1.7	40.4	1550	1200	2000	800*400
LT-7000D/Z-S	7000	2300	50.4	64.5	1.7	47.1	1550	1300	2100	800*500
LT-8000D/Z-S	8000	2650	57.6	74.2	2.4	53.9	1550	1400	2200	800*630
LT-9000D/Z-S	9000	3000	64.8	83.2	2.4	60.6	1600	1500	2350	800*630
LT-10000D/Z-S	10000	3250	72	93	3.2	67.3	1600	1550	2400	900*630
LT-12000D/Z-S	12000	4000	84.6	110.9	3.2	80.8	1600	1700	2550	1000*630
LT-13000D/Z-S	13000	4300	93.6	119.9	3.2	87.5	1600	1700	2550	1000*630
LT-15000D/Z-S	15000	5000	108	138.1	3.4	101.0	1650	1850	2700	1250*630
LT-16000D/Z-S	16000	5300	115.2	147	3.4	107.8	1650	1900	2800	1250*630
LT-18000D/Z-S	18000	6000	129.6	166	4.4	121.2	1700	2100	2900	1250*800
LT-20000D/Z-S	20000	6500	144	184	4.4	134.7	1700	2200	2950	1250*800
LT-22000D/Z-S	22000	7200	158.4	201.9	4.4	148.1	1700	2250	3000	1250*1000
LT-25000D/Z-S	25000	8300	180	228.8	4.4	168.3	1800	2500	3250	1400*1000
LT-28000D/Z-S	28000	9300	201.6	255.8	4.4	188.5	1800	2600	3350	1600*1000
LT-30000D/Z-S	30000	10000	216	273.7	4.4	202.0	1850	2700	3450	1800*1000
